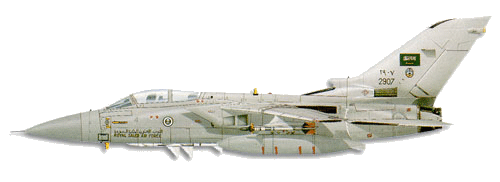

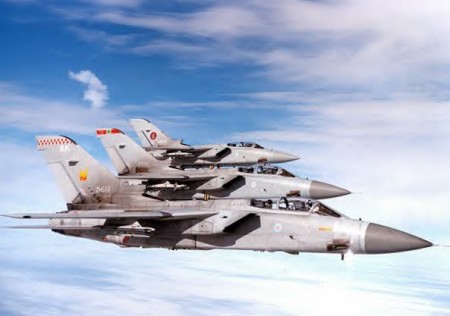

Panavia Tornado
Origin: |
Germany, Italy
and UK |
Type: |
all-weather
air-defence interceptor |
Max Speed: |
2337 km/h /
1,452 mph |
Max Range |
1853 km /
1,150 miles |

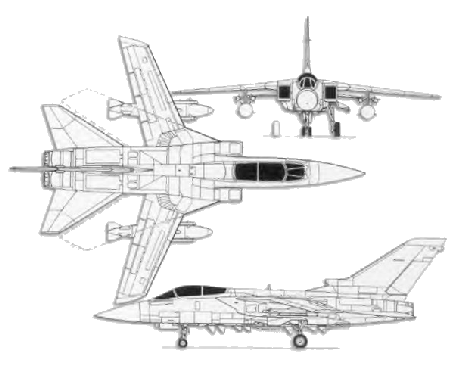

Dimensions: |
span 13.91 m
(45 ft 7.5 in) spread and 8.60 m (28 ft 2.5 in) swept
length 18.68 m (61 ft 3.5 in)
height 5.95 m (19 ft 6.25 in) |
Weight: |
normal 9072 kg
/ 20,000 Ib |
Powerplant: |
two 7493-kg
(16,520-lb) afterburning thrust Turbo-Union RB.199-34R Mk 104
turbofans |
Armament: |
one 27-mm
IWKA-Mauser cannon with 180 rounds; provision for 5806 kg (12,800 Ib)
of disposable stores, including Sky Flash medium-range AAMs, AIM-9L
Sidewinder short-range AAMs and drop tanks, carried on four
uderfuselage and two underwing hardpoints |
|
|
