Chengdu F-7 Airguard
Origin: |
China |
Type: |
Fighter |
Max Speed: |
1,175 kt /
1,350 mph |
Max Range |
600 km / 373
miles |

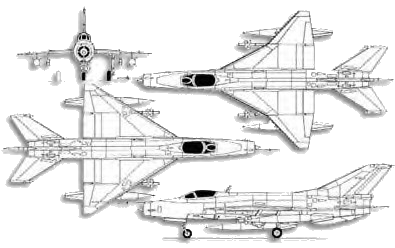

Dimensions: |
span 7.154 m /
23 ft 5.625 in
length 13.945 m / 45 ft 9 in
height 4.103 m / 13 ft 5.5 in |
Weight: |
empty 5275 kg
/ 11,629 lb normal take-off 7531 kg / 16,603 lb |
Powerplant: |
one Liyang (LMC) Wopen WP-7B(BM) rated at 43.15 kN (9.700 Ib st) dry
and 59.82 kN (13,448 Ib st) with afterburning. This is derived from
the TumanskiiR-1 IF-300 |
Armament: |
Two internal 30 mm Type 30-1 cannon or One 23 mm Type 23-3 cannon
AIM-9L Sidewinder; PL-2, PL-5, bombs; rockets |
|
|
