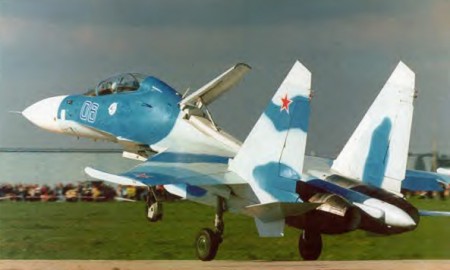

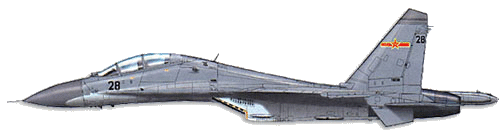

Sukhoi Su-30 Flanker
|
Origin: |
Russia |
|
Type: |
Two Seat
long-range multi-role interceptor |
|
Max Speed: |
1,320
mph/2,125 km/h |
|
Max Range |
1,864
miles/3,000 km |
|
Dimensions: |
Span 48ft
3in/14.7m
Length 72ft/21.9m
Height 19ft 6in/5.9m |
|
Weight: |
Maximum
take-off 83,775 lb/38,000 kg |
|
Powerplant: |
Thrust
vectoring AL-31FP turbofans |
|
Armament: |
Su-30 maximum
load is 17,636lb/8,000kg. Typical armament comprises 10 AAMs,
including a mix of up to 6 extended-range AA-10 Alamo and up to 6 R-73
close-air combat AAMs, with options of AA-12 Adder
|
|
|
