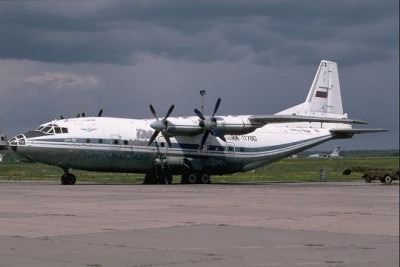

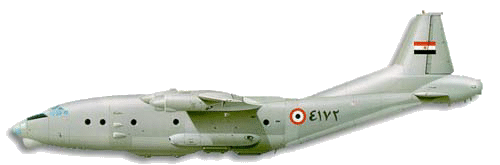

Antonov An-12 Cub
Origin: |
USSR |
Type: |
electronic
intelligence platform ('Cub-B') or ECM platform ('Cub-C/D') |
Max Speed: |
419 kt / 483
mph |
Max Range |
3,600 km /
2,237 mile |
Dimensions: |
span 38.00 m /
124 ft 8.1 in
length 33.10 m / 108 ft 7.1 in
height 10.53 m / 34 ft 6.6 in |
Weight: |
empty 28,000
kg / 61,729 lb
max. take-off 61,000 kg /
134,482 lb |
Powerplant: |
four 2983-ekW
(4,000-eshp) Ivchyenko AI-20K turboprops |
Armament: |
two 23-mm
NR-23 cannon in tail turret ('Cub-B/D') or none ('Cub-C')
|
|
|
