The
backbone of German air support for the blitzkrieg assaults against
Poland, France, and the Soviet Union. The Ju 87 Stuka, a key factor in
German ground victories, was also an effective anti-shipping aircraft.
Aviation historian William Green called the Stuka "an evil-looking
machine, with something of the predatory bird in its ugly contours -
its radiator bath and fixed, spatted undercarriage resembling gaping
jaws and extended talons..." (Stuka was a derivation of
Sturzkampfflugzeug, a term descriptive of all dive bombers.)
Ju
87 deliveries to Luftwaffe squadrons began in the spring of 1937. Late
that year Ju 87s began to arrive in Spain to support the Nationalist
forces in the Spanish Civil War. Despite relatively poor performance,
the Ju 87 was effective against both ground targets and shipping. The
Ju 87 saw combat on every front on which the Germans fought during the
war. Designed to serve as "long-range artillery" to support the German
Army, the Ju 87's bombing accuracy was less than 30 yards. However,
the aircraft's effectiveness presupposed control of the air and when
that could not be guaranteed by German fighters, the slow, lightly
armed Ju 87 was extremely vulnerable to interception.
in
the May 1940 assault on Holland and France, the Ju 87 devastated the
city of Rotterdam. The plane was employed in the Battle of Britain
beginning in July 1940, with some 280 Ju 87's available for strikes on
Britain. But the Stuka was withdrawn on Aug. 19 following heavy losses
from RAF fighters. (For example, on Aug. 17 of the eighty-five Ju 87's
attacking targets in Britain, twenty-six were shot down and another
fourteen were damaged). Subsequently, the aircraft was flown
extensively in the Mediterranean and on the Eastern Front, again with
great success. Flying in the anti-shipping role, the Ju 87 was able to
heavily damage two British aircraft carriers in the Mediterranean, and
to sink and damage many other ships. (The only dive bombers to surpass
the Ju 87's effectiveness in attacking warships were the U.S. SBD
Dauntless and the Japanese Val.) Late in the European War the Allied
control of the air over Germany forced the employment of the Ju 87 as a
night bomber.
The
Ju 87 was the product of the Junkers firm, pushed into service by
Generaloberst Ernst Udet, who in 1931 had observed the dive-bombing
technique being developed by the U.S. Navy. Encouraged by Hermann
Goring, the Reich minister for aviation, Udet demonstrated dive bombing
in Germany. By the end of 1935 the Junkers firm had produced the
prototype Ju 87, which was flight tested late that same year. After
its combat introduction in Spain, Goring ordered production accelerated
and through 1944 more than 5,000 aircraft were produced. Italy,
Rumania, Hungary, and Bulgaria also flew the Ju 87 during the war.

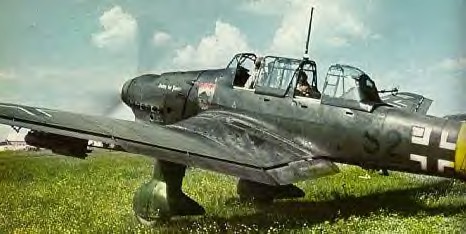

The
single-engine plane had inverted gull-shaped wings, an in-line, water
cooled engine, and large, fixed landing gear with "spats" covers.
Bombers were carried under the wings and fuselage, and the cockpit held
a pilot and radio operator, the latter firing a machine gun to protect
the rear of the place when in a dive. In production aircraft an
autopilot was fitted to take control if the pilot blacked out during a

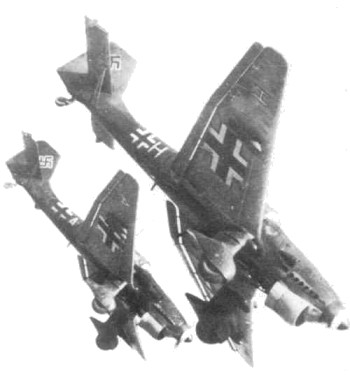

dive. The Germans found that when dive bombers pushed over into their
dive they had a terrifying effect on troops; Ernst Udet conceived the
idea of increasing the natural howling of the dive by attaching sirens
to the undercarriage. The place was considered easy to fly and very
popular with its pilots and troops they supported.
The
Ju 87C variant had upward-folding, outer wing panels, a tail hook, and
other features for use from the never-finished aircraft carrier Graf
Zeppelin. The Ju 87D-3 was experimentally fitted with twin pods on its
wing, each for carrying two agents who were to be dropped behind enemy
lines; despite extensive tests, this scheme was not adopted.
Maximum speed of the Ju 87D model was 255 mph; cruising speed was 198
mph. Range with a 3,960 pound bomb load was 620 miles; with maximum
fuel and a token bomb load the aircraft could fly almost double that
distance. A higher performance variant, the Ju 187 with a
remote-controlled gun turret and retracting undercarriage was under
development when the war ended. The two-seat Ju 87 had two fixed,
forward firing 7.9 mm machine guns and a twin 7.9 mm machine gun on a
flexible mount in the rear cockpit. For short-range missions the Ju 87
could carry one 3,970 pound bomb or a variety of lesser weapons or two
under-wing pods with multiple machine guns or paired 20 mm cannon.
MODEL |
L |
Type |
Dive Bomber |
Crew |
2 |
Manufacturer |
Junkers |
Year |
1940 |
Num. Produced |
5700 + (total
production) |
Powerplant |
(1)
1300 hp Junkers Jumo 211 J, 12 Cyl. Inverted Vee liquid-cooled
inline piston engine |
Performance |
|
max speed |
255
mph (408 kmh) @ 13,500 ft (4120 m) |
initial climb |
789
ft (240 m) / min. |
service ceiling |
24,000 ft (7320 m) |
range |
620
nm (1000 km) |
Weight |
|
empty |
9,700 lb (4400 kg) |
loaded |
14,500 lb (6585 kg) |
Dimensions |
|
span |
45
ft 4 in (13.80 m) |
length |
36
ft 6 in (11.13 m) |
height |
12
ft 9 in (3.90 m) |
wing area |
335
sq ft (31.0 m2) |
Armament |
|
guns |
Wing Mounted:
2 x 20 mm MG 151/20 cannon
Rear Flex Mounted:
2 x 7.9 mm MG 81 machine gun
For ground attack:
two weapon pods mounted under the wings ( 6 MG 81's each)
|
bomb / rocket load |
Fuselage Rack:
1 x 550, 1100, 2200 or 3000 lb bomb
Wing Racks:
4 x 110 lb or
2 x 550 lb or
2 x 1,100 lb bomb |
|
