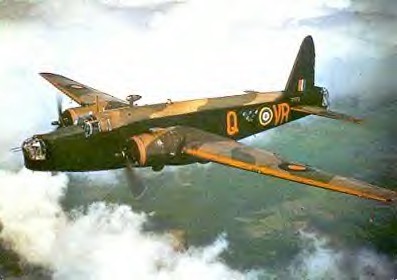

Building upon the experience gained from Barnes Wallis' geodetic
structural concept, which had been used in the airframe of the
Wellesley, Vickers adopted such construction when tendering for a
prototype contract to Air Ministry Specification B.9/32. This called
for an aircraft capable of delivering a bomb load of 1,000 lbs (454 kg)
and with a range of 720 miles (1159 km). These requirements were
surpassed by the Vickers proposal, which was for a mid-wing medium day
bomber with two Rolls-Royce Goshawk engines and retractable landing
gear, able to carry more than 4,500 lbs (2041 kg) of bombs, and having
a maximum range of 2,800 miles (4506 km).
The
prototype (K4049) with two 915 hp (682 kW) Bristol Pegasus X engines,
and having a Supermarine Stranraer fin and rudder assembly designed by
George Edwards, was completed at Weybridge in May 1936. It was first
flown by Vickers' chief test pilot, J. 'Mutt' Summers, on 15 June.
Later that month, it was exhibited at the 1936 Hendon Air Display, with
nose and tail cupolas covered to prevent details of its still secret
constructional method being revealed. After initial manufacturer's
testing the aircraft was flown to the Aircraft and Armament
Experimental Establishment at Martlesham Heath for official trials.
Near there, on 19 April 1937, with tests almost concluded, the
prototype crashed after elevator overbalance in a high-speed dive
resulted in inversion and structural failure.

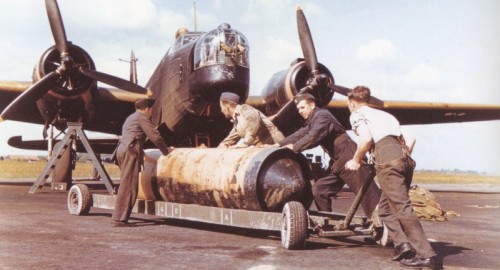

Armourers load up a 4,000 lbs (1812 kg) Block Buster bomb (also called
a Cookie) into a Vickers Wellington.
On
15 August 1936, however, the Air Ministry had placed an order for 180
Wellington Mk Is to specification B.29/36. These were required to have
a redesigned and slightly more angular fuselage, a revised tail unit,
and hydraulically operated Vickers nose, ventral and tail turrets. The
first production Wellington Mk I (L4212) was flown on 23 December 1937,
powered by Pegasus X engines. In April 1938, however, the 1,050 hp (783
kW) Pegasus XVIII became standard for the other 3,052 Mk Is of all
variants built at Weybridge, or at the Blackpool and Chester factories
which were established to keep pace with orders.
Initial Mk Is totalled 181, of which three were built at Chester. These
were followed by 187 Mk IAs with Nash and Thompson turrets and
strengthened landing gear with larger main wheels. Except for 17
Chester-built aircraft, all were manufactured at Weybridge. The most
numerous of the Mk I variants was the Mk IC, which had Vickers 'K' or
Browning machine-guns in beam positions (these replacing the ventral
turret), improved hydraulics, and a strengthened bomb bay beam to allow
a 4,000 lbs (1814 kg) bomb to be carried. Of this version 2,685 were
built (1,052 at Weybridge, 50 at Blackpool and 1,583 at Chester), 138
of them being delivered as torpedo-bombers after successful trials at
the Torpedo Development Unit, Gosport.
Many of the improvements incorporated in the Mks IA and IC were
developed for the Mk II, powered by 1,145 hp (854 kW) Rolls-Royce
Merlin X engines as an insurance against Pegasus supply problems. The
prototype was a conversion of the 38th Mk I, and this made its first
flight on 3 March 1939 at Brooklands. Although range was reduced
slightly, the Wellington II offered improvements in speed, service
ceiling and maximum weight, the last rising from the 24,850 lbs (11272
kg) of the basic Mk I to 33,000 lbs (14969 kg). Weybridge built 401 of
this version.
With the Wellington III a switch was made to Bristol Hercules engines,
the prototype being the 39th Mk I airframe with Hercules HE1-SMs, two
stage superchargers and de Havilland propellers. After initial problems
with this installation, a Mk IC was converted to take two 1,425 hp
(1063 kW) Hercules III engines driving Rotol propellers. Production Mk
IIIs had 1,590 hp (1186 kW) Hercules XIs, and later aircraft were
fitted with four-gun FN.20A tail turrets, doubling the fire power of
the installation in earlier marks. Two were completed at Weybridge, 780
at Blackpool and 737 at Chester .
The
availability of a number of 1,050 hp (783 kW) Pratt & Whitney Twin Wasp
R-1830-S3C4-G engines, ordered by but not delivered to France, led to
development of the Wellington IV. The prototype was one of 220 Mk IVs
built at Chester, but on its delivery flight to Weybridge carburettor
icing caused both engines to fail on the approach to Brooklands, and
the aircraft made a forced landing at Addlestone. The original Hamilton
Standard propellers proved very noisy and were replaced by Curtiss
propellers.
For
high-altitude bombing Vickers was asked to investigate the provision of
a pressure cabin in the Wellington: the resulting Mk V was powered by
two turbocharged Hercules VIII engines. Service ceiling was increased
from the 23,500 ft (7165 m) of the Mk II to 36,800ft (11215 m). The
cylindrical pressure chamber had a porthole in the lower nose position
for the bomb-aimer, and the pilot's head projected into a small
pressurised dome which, although offset to port, provided little
forward or downward view for landing. Two prototypes were built in
Vickers' experimental shop at Fox warren, Cobham, to Specification
B.23/39 and one production machine, to B.17/40, was produced at the
company's extension factory at Smith's Lawn, Windsor Great Park.
The
Wellington VI was a parallel development, with 1,600 hp (1193 kW)
Merlin 60 engines and a service ceiling of 38,500 it (11735 m),
although the prototype had achieved 40,000 ft (12190 m). Wellington VI
production totalled 63, including 18 re-engined Mk Vs, all assembled at
Smith's Lawn. Each had a remotely-controlled F.N.20A tail turret, and
this was locked in position when the aircraft was at altitude. Intended
originally as an improved Mk II with Merlin XX engines, the Wellington
VII was built only as a prototype, and was transferred to Rolls-Royce
at Hucknall for development flying of the Merlin 60s.
First Wellington variant to be developed specifically for Coastal
Command was the GR.Mk VIII, a general reconnaissance/torpedo-bomber
version of the Pegasus XVIII-engined Mk IC. Equipped with ASV (Air to
Surface Vessel) Mk II radar, it was identified readily by the four
dorsal antennae and the four pairs of transmitting aerials on each side
of the fuselage. A total of 271 torpedo-bombers for daylight operation
was built at Weybridge, together with 65 day bombers and 58 equipped
for night operation with a Leigh searchlight in the ventral turret
position. In these last aircraft the nose armament was deleted and the
position occupied by the light operator.
The
designation Mk IX was allocated to a single troop-carrying conversion
of a Wellington IA, but the Mk X was the last of the bomber variants
and the most numerous. It was based on the Mk III, but had the more
powerful 1,675 hp (1249 kW) Hercules VI or XVI engines with downdraught
carburettor, and was identified externally from earlier marks by the
long carburettor intake on top of the engine cowling. Internal
structural strengthening, achieved by the use of the newly-developed
DTD646 aluminium alloy, allowed maximum take-off weight to raise to
36,000 lbs (16329 kg). Production was shared between Blackpool and
Chester, with totals of 1,369 and 2,434 respectively. After withdrawal
from first-Iine service with Bomber Command, Mk Xs were among many
Wellingtons flown by Operational Training Units. After the war a number
were converted by Boulton Paul Aircraft as T.Mk 10 crew trainers, with
the nose turret faired over.
Making use of the experience gained with the Wellington VIII
torpedo-bombers, the GR.Mk XI was developed from the Mk X, using the
same Hercules VI or XVI engines. It was equipped initially with ASV Mk
II radar , although this was superseded later by centrimetric ASV Mk
III. This latter equipment had first been fitted to the GR.XII, which
was a Leigh Light equipped anti-submarine version. Weybridge built 105
Mk XIs and 50 Mk XIIs, while Blackpool and Chester respectively
assembled 75 Mk XIs and eight Mk XIIs, but with 1,735 hp (1294 kW)
Hercules XVII engines.
Weybridge was responsible for 42 Mk XlIIs and 53 Mk XIVs, Blackpool for
802 XlIIs and 250 Mk XIVs, and Chester for 538 Mk XIVs.
A
transport conversion of the Mk I, the C.Mk IA, was further developed as
the C.Mk XV, while the C.Mk XVI was a similar development of the Mk IC.
They were unarmed, as were the last three basic versions which were all
trainers. The T.Mk XVII was a Mk XI converted by the RAF for night
fighter crew training with SCR-720 AI (Airborne Interception) radar in
a nose radome. Eighty externally similar aircraft, with accommodation
for instructor and four pupils and based on the Mk XIII, were built at
Blackpool as T.Mk XVIIIs. Finally, RAF converted Mk Xs for basic crew
training were designated T.Mk XIXs. In total 11,461 Wellingtons were
built, including the prototype, and the last was a Blackpool built Mk X
handed over on 25 October 1945.
The
fourth production Wellington Mk I was the first to reach an operational
squadron, arriving at Mildenhall in October 1938 for No.99 Squadron.
Six squadrons, of No.3 Group (Nos. 9, 37, 38, 99, 115 and 149) were
equipped by the outbreak of war, and among units working up was the New
Zealand Flight at Marham, Norfolk, where training was in progress in
preparation for delivery to New Zealand of 30 Wellington Is. The flight
later became No.75 (NZ) Squadron, the first Dominion squadron to be
formed in World War II. Sergeant James Ward of No. 75 later became the
only recipient of the Victoria Cross while serving on Wellingtons, the
decoration being awarded for crawling out on to the wing in flight to
extinguish a fire, during a sortie made on 7 July 1941.
On
4 September 1939, the second day of the war, Wellingtons of Nos. 9 and
149 Squadrons bombed German shipping at Brunsbuttel, sharing with the
Bristol Blenheims of Nos. 107 and 110 Squadrons the honour of Bomber
Command's first bombing raids on German territory. Wellingtons in tight
formation were reckoned to have such outstanding defensive firepower as
to be almost impregnable, but after maulings at the hands of pilots of
the Luftwaffe's JG 1, during raids on the Schillig Roads (Heligoland
Blight) on 14 and 18 December, some lessons were learned. Self-sealing
tanks were essential, and the Wellington's vulnerability to beam
attacks from above led to introduction of beam gun positions. Most
significantly, operations switched to nights.
Wellingtons of Nos. 99 and 149 Squadrons were among aircraft despatched
in Bomber Command's first attack on Berlin, which took place on 25/26
August 1940; and on 1 April 1941, a Wellington of No.149 Squadron
dropped the first 4,000 lbs (1814 kg) 'blockbuster' bomb during a raid
on Emden. Of 1,046 aircraft which took part in the Cologne raid during
the night of 30 May 1942, 599 were Wellingtons. The last operational
sortie by Bomber Command Wellingtons was flown on 8/9 October 1943.
There was, however, still an important role for the Wellington to play
with Coastal Command. Maritime operations had started with the four DWI
Wellingtons: these had been converted by Vickers in the opening months
of 1940 to carry a 52 ft (15.85 m) diameter metal ring, which contained
a coil that could create a field current to detonate magnetic mines.
Eleven almost identical aircraft, with 48 ft (14.63 m) rings, were
converted by W. A. Rollason Ltd. at Croydon, and others on site in the
Middle East.
No.172 Squadron at Chivenor, covering the Western Approaches, was the
first to use the Leigh Light equipped Wellington VIII operationally,
and the first attack on a U -boat by such an aircraft at night took
place on 3 June 1942, with the first sinking recorded on 6 July. From
December 1941 Wellingtons were flying shipping strikes in the
Mediterranean, and in the Far East No.36 Squadron began anti-submarine
operations in October 1942.
In
1940 the entry of the Italians into World War II resulted in
Wellingtons being sent out from Great Britain to serve with No.205
Group, Desert Air Force. No.70 Squadron flew its first night attack on
19 September, against the port of Benghazi, and as the tide of war
turned during 1942 and 1943, units moved into Tunisia to support the
invasions of Sicily and Italy, operating from Italian soil at the close
of 1943. The last Wellington bombing raid of the war in southern Europe
took place on 13 March 1945, when six aircraft joined a Consolidated
Liberator strike on marshalling yards at Treviso in northern Italy.
In
the Far East, too, Wellingtons served as bombers with No.225 Group in
India, Mk ICs of No.215 Squadron flying their first operational sortie
on 23 April 1942. Equipped later with Wellington Xs, Nos. 99 and 215
Squadrons continued to bomb Japanese bases and communications until
replaced by Liberators in late 1944, when the Wellington units were
released for transport duties.
After the war the Wellington was used principally for navigator and
pilot training, Air Navigation Schools and Advanced Flying Schools
until 1953.
Specifications
Specification: |
Wellington Mk 1C |
Manufacturer: |
Vickers-Armstrong |
Crew/Passengers: |
crew of eight |
Number Built: |
11,462 (incl.
181 Mk I, 1887 Mk Ia, 2,685 Mk Ic, 401 Mk II, 1,519 Mk III, 220 Mk
IV, 394 Mk VIII, 3,803 Mk X, 180 Mk XI, 884 Mk XIII, 841 Mk XIV |
Power Plant: |
Two 1,000 hp Britol Pegasus XVIII Engines |
Performance: |
Max Speed: 234 mph (377 km/h)
Service Ceiling: 18,000 ft (5,486 m) Range: 1,805 mi (2,905 km) |
Weights: |
Empty: 18,556 lb (8,459 kg) Max T/O: 29,500 lb (13,381 kg) |
Dimensions: |
Span: 86 ft 2 in ( 26.26 m) Length: 64 ft 7 in (19.69 m)
Height: 17 ft 6 in (5.35 m) Wing Area: 840 sq ft (78.04 sq m) |
Armament: |
2
x 0.303-in (7.7-mm) machine guns in nose turret, 2 x 0.303-in
(7.7-mm) machine guns in tail turret, 2 x 0.303-in (7.7-mm)
machine guns in beam positions plus up to 4,500 lb (2,041 kg) of
bombs. |
Cost: |
Unknown |
Specification: |
Wellington Mk II |
Manufacturer: |
Vickers Aircraft |
Crew/Passengers: |
crew of eight |
Power Plant: |
Two 1,130 hp Rolls Royce Merlin X piston engines |
Performance: |
Max Speed: 235 mph
(378 km/h)
Service Ceiling: 19,000 ft (5,791 m) Range: 1,540 mi (2,478 km) |
Weights: |
Empty: 18,650 lb
(8,459 kg) Max T/O: 29,500 lb (13,381 kg) |
Dimensions: |
Span: 86 ft 2 in (
26.26 m) Length: 64 ft 7 in (18.54 m)
Height: 17 ft 6 in (5.31 m) Wing Area: 840 sq ft (78.04 sq m) |
Armament: |
2 x 0.303-in
(7.7-mm) machine guns in nose turret, 2 x 0.303-in (7.7-mm) machine
guns in tail turret, 2 x 0.303-in (7.7-mm) machine guns in beam
positions plus up to 4,500 lb (2,041 kg) of bombs. |
Cost: |
Unknown |
Specification: |
Wellington Mk III |
Manufacturer: |
Vickers-Armstrong |
Crew/Passengers: |
crew of eight |
Number Built: |
11,462 (incl.
181 Mk I, 1887 Mk Ia, 2,685 Mk Ic, 401 Mk II, 1,519 Mk III, 220 Mk
IV, 394 Mk VIII, 3,803 Mk X, 180 Mk XI, 884 Mk XIII, 841 Mk XIV |
Power Plant: |
Two 1,425 hp Bristol Hercules III or XI Engine |
Performance: |
Max Speed: 255 mph (411 km/h)
Service Ceiling: 18,000 ft (5,486 m) Range: 1,470 mi (2,366 km) |
Weights: |
Empty: 22,000 lb (8,459 kg) Max T/O: 29,500 lb (13,381 kg) |
Dimensions: |
Span: 86 ft 2 in ( 26.26 m) Length: 64 ft 7 in (19.69 m)
Height: 17 ft 6 in (5.35 m) Wing Area: 840 sq ft (78.04 sq m) |
Armament:
|
2
x 0.303-in (7.7-mm) machine guns in nose turret, 2 x 0.303-in
(7.7-mm) machine guns in tail turret, 2 x 0.303-in (7.7-mm)
machine guns in beam positions plus up to 4,500 lb (2,041 kg) of
bombs.
|
|
|
