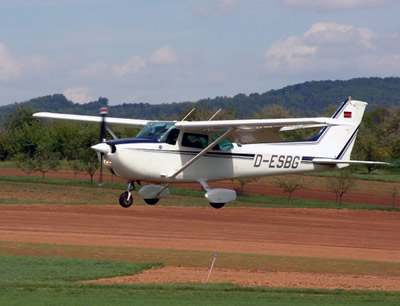

The Cessna 172 Skyhawk
The Cessna 172 is without doubt the most successful mass produced light aircraft in history. From 1955 through to 1967 the 172 was powered by the six cylinder Continental O-300, before this engine was replaced by the four cylinder Lycoming O-320.
Cessna expected the new 172 to have only limited success, in view of the release of the Cessna 177 Cardinal at the same time. But the Cessna 172 became the most successful mass produced light aircraft in history.
The Skyhawk went through a series of developments in terms of aerofoil redesign, wider track undercarriage, increased fuel capacity options, reshaped windows and an optional higher standard "II" equipment package. High performance variants included the R172 Hawk XP, with a 195 hp engine, and the 172RG, with retracting undercarriage and a 180 hp Lycoming O-360 engine. Production models ran from the 172I of 1968 to the 172P of 1985. Total Cessna 172 family production over 42,500, of which the civil Continental powered models account for about 15,800.
Specifications
Engine |
Lycoming 0-320-H2AD 160 HP |
Oil Capacity |
6 Litres (8 litres some models) |
|
|
Total Fuel Capacity |
188 Litres VH-MHG (197 VH-CLS) |
Useable Fuel |
181 Litres VH-MHG (189 VH-CLS) |
Fuel Consumption |
35 Litres / Hour |
|
|
Cruise TAS |
110 Kt |
Best Angle Of Climb |
59 Kt |
Best Rate Of Climb |
73 Kt |
Cruise Climb |
80 Kt |
Approach Speed |
65 Kt |
Max. Crosswind |
15 Kt |
Glide Speed |
65 Kt |
VFE |
85 Kt |
VNE |
160 Kt |
|
|
Basic Empty Weight |
667 Kg |
Max. Take Off Weight |
1043 Kg |
Max. Landing Weight |
1043 Kg |
|
