CT

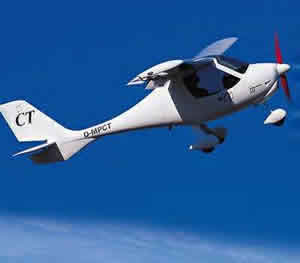

The CT  has a large roomy cabin with plenty of head and leg room. It was designed and is being built in Germany, and is one of the list of aircraft that will fit into the Sportplane category.

The CT is powered by the 100 hp Rotax 912 S. Cruise comes in at 130 mph, at 5300 rpm, stall comes in at 55 mph. Ready to fly the empty weight  is 675. The CT has a useful load of  700 lbs. Fuel capacity 34 gallons giving it a 900 to 1000 mile cross country capability.

Standard features include, flight instruments, and the Rotax engine monitoring system the "Flydat." The control system is standard stick and rudder, with electric flaps, which when used in the negative position will increase your cruise speed by 12 mph.

The CT meets a number of stringent European design standards and has won a number of awards. At the time of writing the factory has produced over 260 planes.

FLIGHT DESIGNS CT

SPECIFICATIONS

PERFORMANCE
WING SPAN 30’ 6 FT. CRUISE SPEED (@ 75%) 132 MPH
LENGTH 20 FT.4 IN. STALL SPEED (VSO ) 38.5 MPH
HEIGHT 7 FT VNE 192 MPH
WING AREA 116 SQ. FT. CLIMB RATE (FT/Min) 1000Ft
ASPECT RATIO 6.53 MAX. RANGE (W/34 GAL.)  1000 MILES.
EMPTY WEIGHT 580 LBS.
GROSS WEIGHT 1232 LBS. TAKEOFF ROLL (@ Wg) 295 FT
FUEL CAPACITY 34 GAL. GLIDE RATIO (ENGINE OFF) N/A

FUEL ECONOMY

4.5 GALS/HR

SINK RATE

N/A
POWERPLANT:

ROTAX 912 (912 C.C. 80HP )

OPTIONAL:

ROTAX 912S (100HP)

PROPELLERS:

Ground Adjustable Composite

AIRFOIL TYPE:

CARBON FIBRE
